MEDIDAS

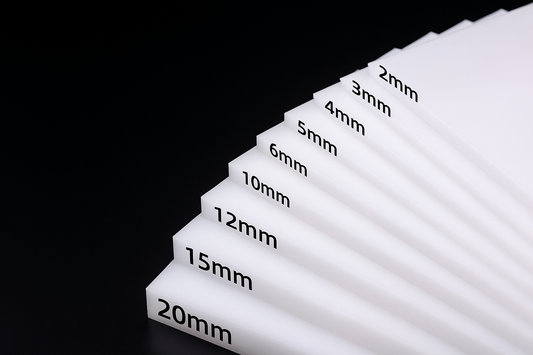

PP Sheet Specification
| Thickness (mm) | Grey, Milky, Ivory | Natural | ||
|---|---|---|---|---|
| 1220x2440 | 1500x3000 | 1220x2440 | 1500x3000 | |
| 1 | 2.74 | — | 2.71 | — |
| 2 | 5.48 | — | 5.42 | — |
| 3 | 8.21 | 12.42 | 8.12 | 12.28 |
| 4 | 10.95 | 16.56 | 10.83 | 16.38 |
| 5 | 13.69 | 20.70 | 13.54 | 20.47 |
| 6 | 16.43 | 24.84 | 16.25 | 24.57 |
| 8 | 21.90 | 33.12 | 21.67 | 32.76 |
| 10 | 27.38 | 41.40 | 27.08 | 40.95 |
| 12 | 32.86 | 49.68 | 32.50 | 49.14 |
| 15 | 41.07 | 62.10 | 40.63 | 61.42 |
| 20 | 54.77 | 82.80 | 54.17 | 81.90 |
| 25 | 68.46 | 103.50 | 67.72 | 102.37 |
| 30 | 82.15 | 124.20 | 81.26 | 122.85 |
U-Profile Specification
| Item | Size (mm) | Length (mm) | Thickness (mm) | Package (PC/Roll) | Color |
|---|---|---|---|---|---|
| U-profile | 40×40×40 | 4000 | 3 | 40 | Natural |
| 40×60×40 | 32 | Natural | |||
| 40×80×40 | Customized | 24 | Natural | ||
| 50×50×50 | 30 | Grey | |||
| 60×40×60 | 30 | Grey | |||
| 80×40×80 | 20 | Customized | |||
| 100×50×100 | 16 | Customized |

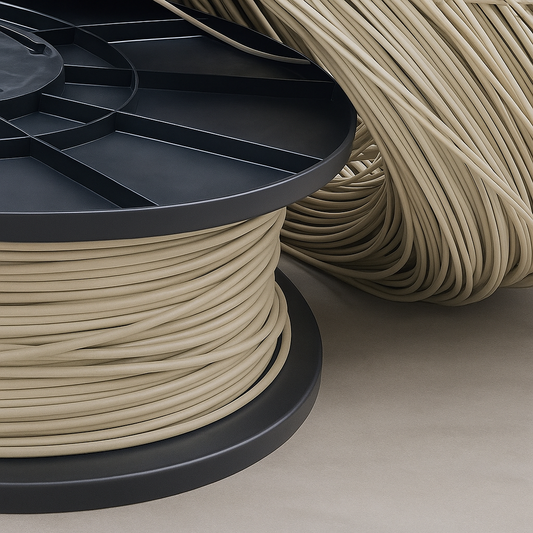

Strip Pack Specification
| Shape | Size (mm) | Color | KG/roll | Pack in strip |
|---|---|---|---|---|
| Triangle | 3×3×5 | Natural, Grey, Milky, customized |
5KGS | 1.0m, 1.5m or customized |
| 4×4×6 | ||||
| 5×5×7 | ||||
| Round | 3 | |||
| 4 | ||||
| Two-core | 2.5 | |||
| 3 |
Plastic Mirror Sheet Specification
| Material | PMMA | PS | PC | PETG |
|---|---|---|---|---|
| Size | 1220×1830 1220×2440 |
1220×1830 1220×2440 |
915×1830 | 915×1830 |
| Thickness (mm) | 0.8 – 6 | 0.8 – 6 | 0.17 – 1.5 | 0.25 – 1.0 |
| Back | Paint, Paper, Adhesive | Paint, Paper, Adhesive | Paper, Adhesive | Paper, Adhesive |
Chemical Resistance at Various Temperatures
| Name of Chemicals | 20°C | 60°C | 100°C |
|---|---|---|---|
| CH₃CHO For industrial | ○ | ||
| CH₃COOH 100% | ○ | ✕ | △ |
| CH₃COCH₃ For industrial | ◎ | ◎ | ◎ |
| C₆H₁₀O₄ with water Saturated | ◎ | ◎ | ◎ |
| NH₃·H₂O Any concentration | ◎ | ◎ | ◎ |
| NH₄Cl with water Any concentration | ◎ | ◎ | ◎ |
| NH₄NO₃ with water Any concentration | ◎ | ◎ | ◎ |
| (NH₄)₂SO₄ with water Any concentration | ◎ | ◎ | ◎ |
| H₈N₂S with water Any concentration | ◎ | ◎ | ◎ |
| C₅H₁₂O For industrial | ◎ | ◎ | ◎ |
| C₆H₇N Any concentration | ◎ | ◎ | |
| (CH₂)₅CO | ◎ | ◎ | |
| HNO₃ | △ | △ | |
| Bichromate-H₂SO₄ Concentrated | △ | △ | |
| C₆H₆ For industrial | ○ | △ | |
| H₃BO₃ with water Any concentration | ◎ | ◎ | ◎ |
| Bromine water Cold saturated | ○ | ◎ | ◎ |
| C₄H₁₀O with water Any concentration | ◎ | ◎ | ◎ |
| CH₃COCH₂CH₃ | ◎ | ||
| C₄H₁₀O₂ For industrial | ◎ | ◎ | ◎ |
| CH₃COO(CH₂)₃CH₃ For industrial | ○ | △ | |
| C₁₀H₁₄O For industrial | ◎ | ◎ | |
| C₁₃H₁₈O For industrial | △ | △ | |
| CaN₂O₆ with water 50% | ◎ | ◎ | |
| HClO₃ with water 10% | ◎ | ◎ | △ |
| C₁₈H₃₀O₃S | ◎ | ||
| CHCl₃ For industrial | ○ | ○ | △ |
| H₂CrO₄ with water 50% | ○ | ✕ | ✕ |
| CrO₃ with water | ○ | ✕ | ✕ |
| C₆H₁₂O | ◎ | ◎ | ◎ |
| C₆H₄Cl₂ | ○ | ||
| C₂H₂Cl₂O₂ For industrial | ◎ | ||
| C₂H₄Cl₂ | ◎ | ||
| C₄H₁₀O | ○ | ||
| Emulsifier | ◎ | ◎ | |
| C₂H₆O 96% | ◎ | ◎ | |
| Fatty acids | ◎ | ◎ | |
| HCOOH with water 10% | ◎ | ◎ | |
| HCN | ◎ | ◎ | |
| HF with water 40–85% | ○ | ||
| H₂O₂ with water 10% | ◎ | ◎ | |
| H₂O₂ with water 30% | ◎ | ○ | |
| C₃H₈O For industrial | ◎ | ◎ | |
| C₄H₄O₄ with water | ◎ | ◎ | |
| Hg | ◎ | ◎ | |
| CH₃OH For industrial | ◎ | ◎ | |
| HNO₃ 25% | ○ | △ | |
| HNO₃ 50% | ○ | △ | |
| Calcium hypochlorite | ◎ | ◎ | |
| C₆H₈O₇ with water Saturated | ◎ | ◎ | |
| C₆H₆O₃S | ◎ |
